Precision weights M1
Adjusting, testing and calibrating instrument for commercial scales
Adjustment, test and calibration instrument for commercial scales (Class III) and for quality assurance for scales with a number of steps < 30.000.
- Weights for use in the calibration and verification of weights of classes M2 and M3.
All 3 classes depending on accuracy requirements as load authorities for tension, compression and torsion determinations.
Weights from 1g to 500g are marked with their nominal value and the unit symbol "g" (e.g. "10 g").

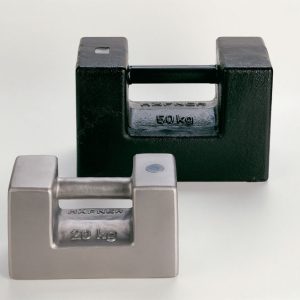

Weights from 1kg and larger are marked with their nominal value and the unit symbol "kg" (e.g. "1 kg").
Additional marking of the class:
- Class M1: "M" or "M1"
- Class M2: "M2"
- Class M3: "M3" oder "X"
are applied to the upper side.
Weights according to DIN 1924 do not have class indicators.

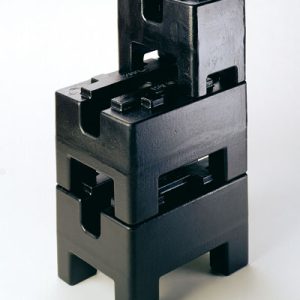

The manufacturer's mark may be applied to rectangular block weights of class M1 and to all weights of class M2 and M3.
To distinguish them, multiple weights of the same denomination in set compositions are marked by dots or stars.
In addition, a maximum of 5 user features (characters, letters and numbers) can be applied as a data matrix to clearly identify the weights as test or measuring equipment. These user features can be defined by the customer when ordering.
